Presto ECOA HH Heavy Duty Series Lift Tables are heavy-duty electrohydraulic scissor lifts with capacities of 8,000 to 12,000 lbs., travel distances are 35 to 60 in., with platform sizes of 36 x 48 x 102 in.
All ECOA Lift Tables are designed and constructed for heavy-duty applications under the toughest working conditions, offering years of trouble-free operation.
Presto ECOA pneumatic scissor lifts use heavy-duty airbags to lift and position loads. They operate on shop air and require no electrical power. Capacities to 8,000 lbs. are available with standard platform sizes up to 48″ x 60″.
Because they have no hydraulics, there is no risk of process contamination.
Incredible, Presto ECOA has the tools and the people to meet your unique needs.
SizzrDoc HLD Series Loading Dock Lifts
The most completely equipped loading docks by Presto ECOA, with the highest structural rating in the industry. Load capacities are 6,000 to 12,000 lbs., travel distances to 60 in. with platform sizes of 48 x 96 in. to 96 x 144 in.
Standard Features

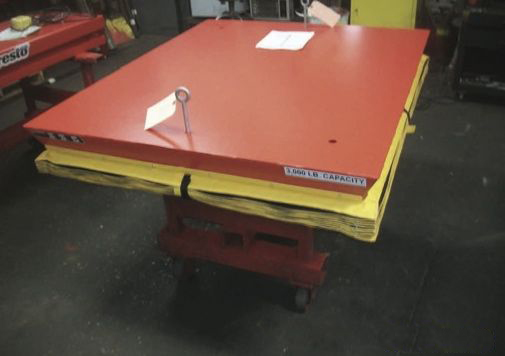

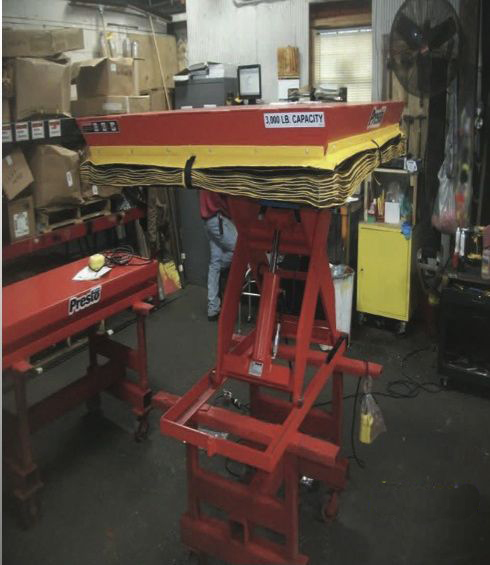

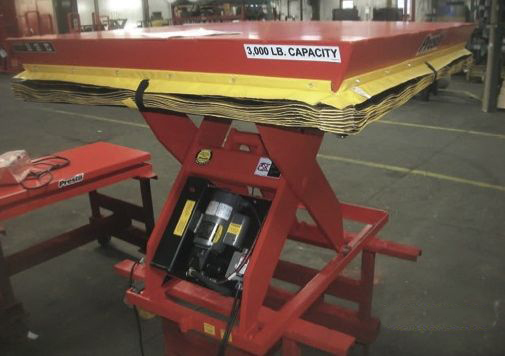

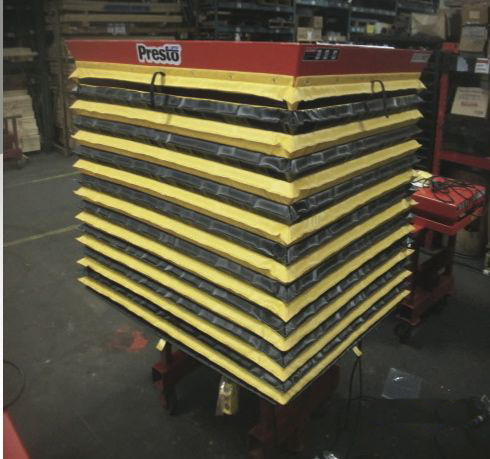

Some more useful information from Presto Lifts. When installing a lift in a work cell or station, Pit Mounting is the best option. After lowering the lift, it is out of the way and the area is free to use. To allow fork truck traffic you can add the optional “roll over” package to increase stability and rigidity to the unit. Platforms and turntables can be sized to the load, helping to decrease the ergonomic issue or “reach over”. Pit mounted lifts can be loaded or unloaded with a hand pallet truck, reducing the need for a forklift or ramps. Presto Lifts adheres to the ANSI MH 29.1 code which requires some form of toe protection as the lift platform descends into the pit. Shown here: Bevel Toe Guards. Simply put, the 30 degree angle built into the platform gives the worker a physical warning to move their feet from the area.
